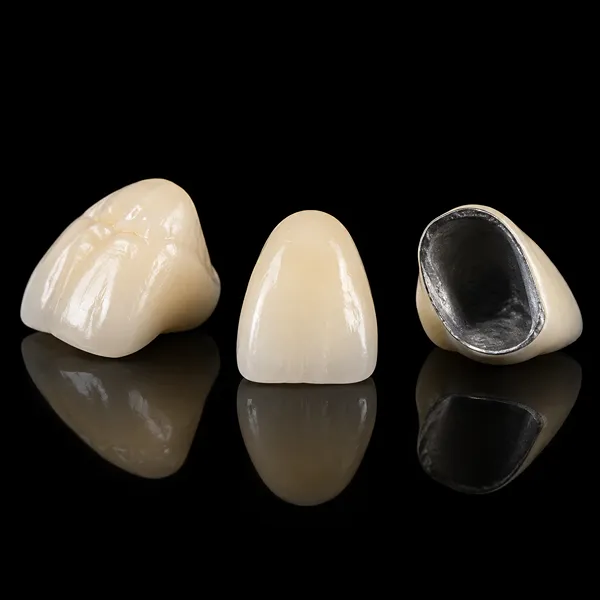

Co-Cr PFM CrownOur Co-Cr PFM crown combines a cobalt-chromium metal substructure with layered dental porcelain, providing a durable metal-ceramic restoration for a wide range of single-crown and fixed restorative applications.
|
|
|

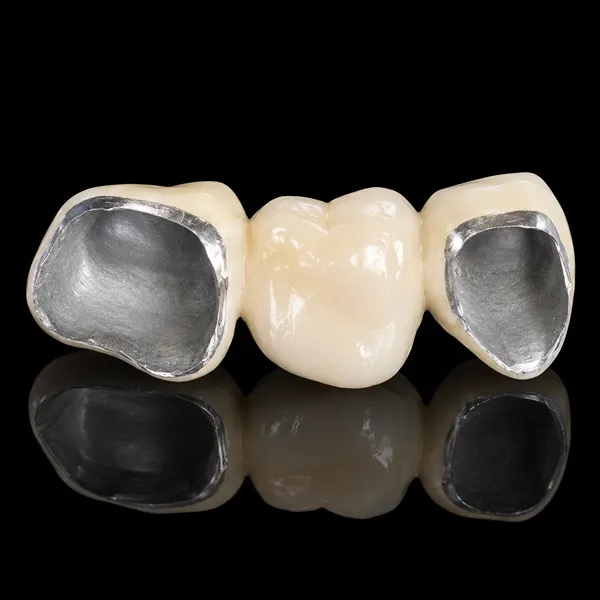

Ni-Cr PFM CrownBestoDental Ni-Cr PFM crown features a nickel-chromium alloy substructure veneered with dental porcelain, offering a practical metal-ceramic solution for selected anterior and posterior crown restorations.
|
|
|

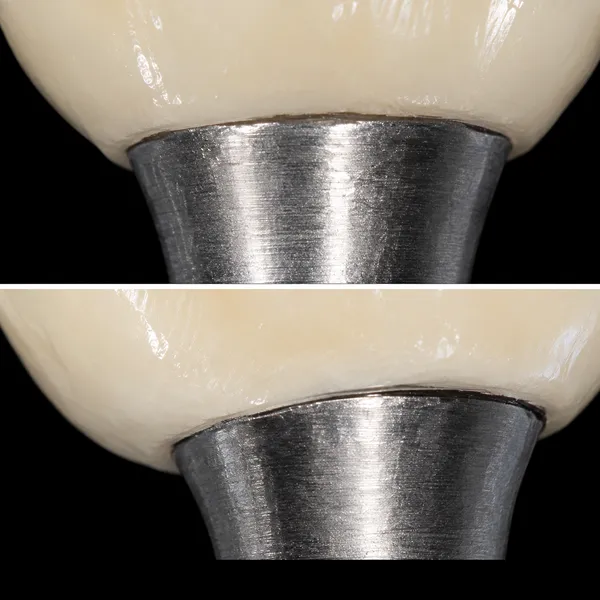

Titanium PFM CrownWe provide titanium PFM crown restorations using a titanium-based substructure combined with veneering porcelain for selected cases where titanium is preferred as the framework material.
|
|
|

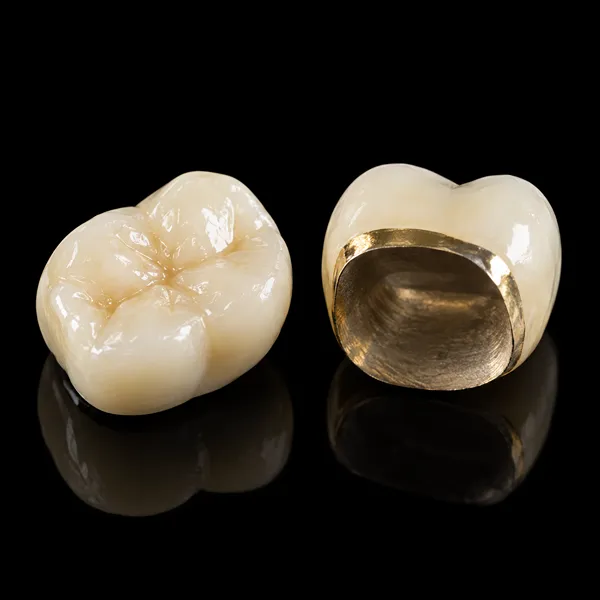

Semi-Precious PFM CrownOur semi-precious PFM crown uses a noble-metal-containing alloy framework with dental porcelain to balance mechanical performance, handling characteristics and aesthetic requirements in fixed restorative cases.
|
|
|

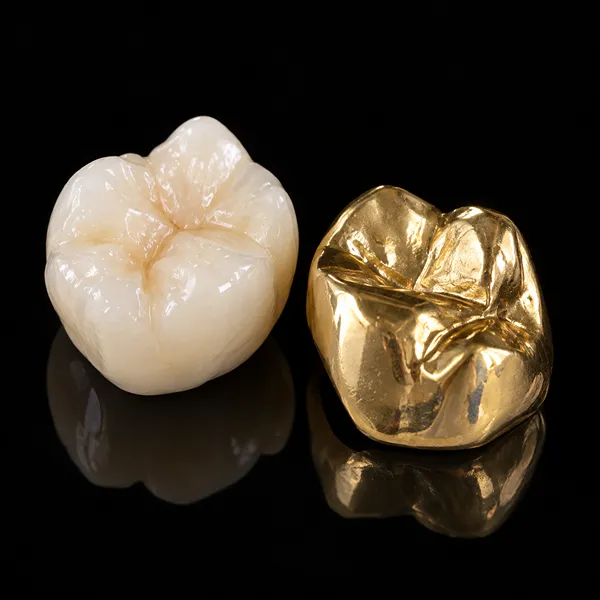

High-Noble PFM CrownBestoDental high-noble PFM crown combines a high-noble metal alloy substructure with dental porcelain, offering a premium metal-ceramic option for cases where noble metal composition and long-term restorative performance are important considerations.
|
|
|

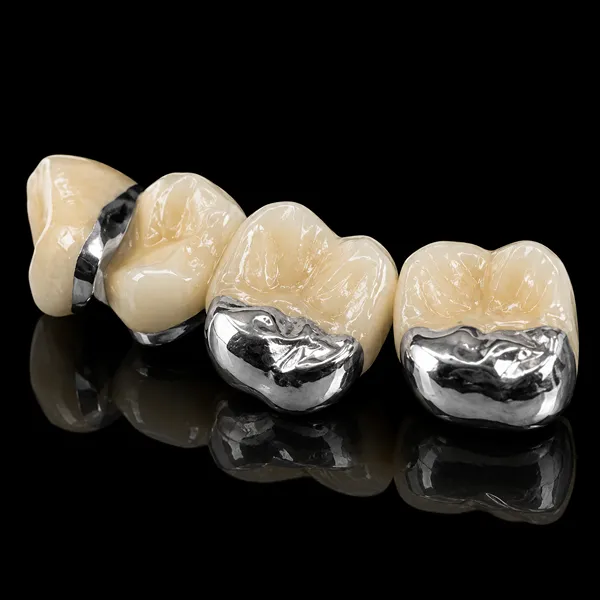

PFM Surveyed CrownWe offer PFM surveyed crown restorations designed for abutment teeth supporting removable partial dentures, with the crown contour coordinated to accommodate features such as guide planes, rest seats and retentive areas.
|
|
|
PFM Crown Anterior TeethOur PFM crown for anterior teeth combines a metal substructure with veneering porcelain and is designed with attention to anterior tooth morphology, shade, incisal form and the appearance of the surrounding dentition.
|
PFM Crown
PFM Crown
Our PFM crown restorations combine a metal framework with veneering porcelain to provide a versatile fixed restorative option for anterior and posterior applications. BestoDental offers multiple alloy selections and specialized PFM designs to accommodate different material preferences, tooth positions and clinical requirements.
- Co-Cr, Ni-Cr, titanium, semi-precious and high-noble PFM crown options
- Anterior and posterior PFM crown configurations with customized tooth morphology
- PFM surveyed crowns designed to coordinate with removable partial denture frameworks
- Customized shade, porcelain contour, occlusal anatomy, proximal contacts and anterior aesthetics
Clinical & Technical Information
PFM crown is a fixed metal-ceramic restoration that combines a cast or digitally fabricated metal substructure with veneering porcelain. BestoDental provides multiple PFM crown alloy options and specialized designs to accommodate differences in material preference, tooth position, restorative requirements and removable partial denture applications.
1. Indications
Our PFM crown restorations are suitable for:
- Anterior and posterior single-crown restorations where a metal-ceramic restoration is clinically appropriate
- Cases requiring a combination of a metal framework and tooth-colored porcelain
- Restorations requiring different alloy options according to the prescription
- Cases requiring Co-Cr, Ni-Cr, titanium, semi-precious or high-noble metal frameworks
- Abutment teeth requiring a surveyed crown design for a removable partial denture
- Anterior cases requiring customized shade, morphology and incisal anatomy
2. Technical Specifications
| Technical Parameter | Specification |
| Product Name | PFM crown |
| Product Variants | Co-Cr, Ni-Cr, titanium, semi-precious, high-noble, surveyed and anterior PFM crown options |
| Framework Material | Co-Cr, Ni-Cr, titanium, semi-precious or high-noble alloy according to the selected model |
| Veneering | Dental porcelain fused to the metal framework |
| Retention | Cement-Retained |
| Strength | High |
| Fit Accuracy | Excellent |
| Tooth Position | Anterior and posterior according to the selected model |
| Crown Design | Full-coverage crown design customized according to the prepared tooth and prescription |
| Surveyed Crown Design | Guide planes, rest seats, survey lines and retentive contours can be incorporated according to the RPD design |
| Shade | Specified according to the prescription and coordinated with the adjacent dentition |
| Tooth Morphology | Customized according to the tooth position, adjacent teeth and clinical requirements |
| Occlusal Design | Customized according to the opposing dentition and functional requirements |
| Proximal Contacts | Customized according to adjacent teeth and restorative requirements |
3. Aesthetics
Aesthetics for our PFM crown restorations focus on controlling the porcelain contour, shade, tooth morphology and surface anatomy while maintaining the required metal framework design.
1) Tooth-Colored Porcelain
The porcelain veneering layer provides a tooth-colored external surface designed to reproduce the appearance of natural dentition.
2) Customized Shade
The porcelain shade can be selected according to the prescription and coordinated with the adjacent teeth and surrounding dentition.
3) Anterior Tooth Morphology
For anterior PFM crowns, the facial contour, incisal edge, line angles and surface anatomy can be customized according to the tooth position and adjacent dentition.
4) Porcelain-to-Metal Design
The porcelain layer is designed around the underlying metal framework to balance external contour, strength and available restorative space.
5) Customized Surface Anatomy
Surface texture, proximal contour and occlusal anatomy can be adjusted according to the tooth position and clinical requirements.
Order FAQs
1. What alloy options are available for a PFM crown?
BestoDental provides Co-Cr, Ni-Cr, titanium, semi-precious and high-noble PFM crown options. The appropriate alloy can be selected according to the prescription, restorative requirements and material preference.
2. What is the difference between Co-Cr and Ni-Cr PFM crowns?
Both are non-precious metal PFM options, but they use different alloy systems. Co-Cr is commonly selected for its combination of strength and corrosion resistance, while Ni-Cr can provide a practical and cost-conscious metal-ceramic option. Alloy selection should also consider the patient’s material history and clinical requirements.
3. When should I choose a semi-precious or high-noble PFM crown?
Semi-precious and high-noble PFM crowns are selected when the prescription calls for a noble-metal-containing framework. High-noble alloys contain a higher proportion of noble metals and may be preferred for cases with specific alloy requirements.
4. What information is required for a PFM surveyed crown?
In addition to the crown prescription, the laboratory should receive the relevant RPD design information, including the intended path of insertion, rest seat locations, guide plane requirements, clasp or retentive areas and other framework-related details.
5. Can the metal framework and porcelain contour be customized?
Yes. The framework design, porcelain contour and external crown morphology can be adjusted according to the preparation, available space, occlusion and clinical prescription.
6. Can the shade of a PFM crown be customized?
Yes. The required shade should be specified in the prescription. Anterior cases can also include additional information regarding translucency, incisal characteristics and adjacent tooth appearance when needed.
7. Can the occlusal and proximal contacts be customized?
Yes. Occlusal anatomy and proximal contacts can be customized according to the opposing dentition, adjacent teeth, preparation and restorative requirements.
