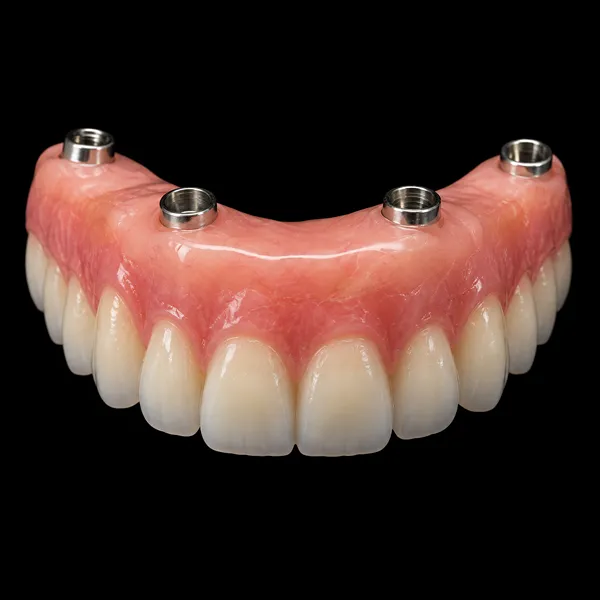

All-on-4 PFM Implant BridgeOur All-on-4 PFM implant bridge is designed as a full-arch fixed restoration supported by four strategically positioned implants. Its full-arch configuration combines a metal framework with porcelain veneering to restore the appearance and function of a complete dental arch.
|
|
|

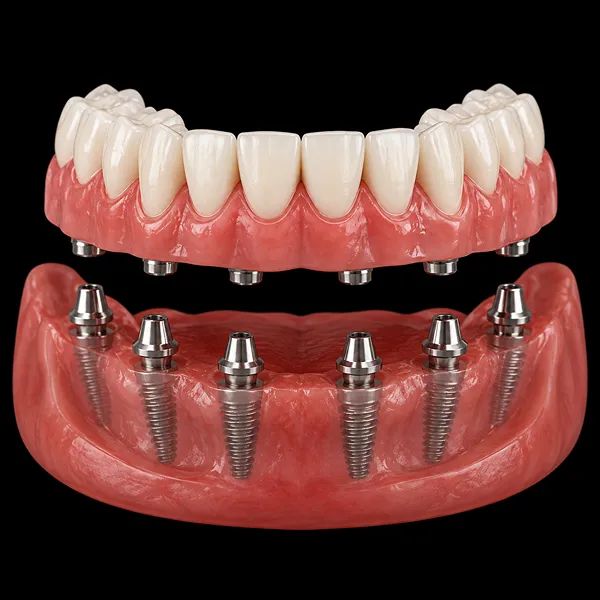

All-on-6 PFM Implant BridgeBestoDental All-on-6 PFM implant bridge provides a full-arch metal-ceramic restoration supported by six implants. The additional implant support allows the framework and prosthetic tooth arrangement to be planned around the individual implant distribution and full-arch occlusal requirements.
|
|
|

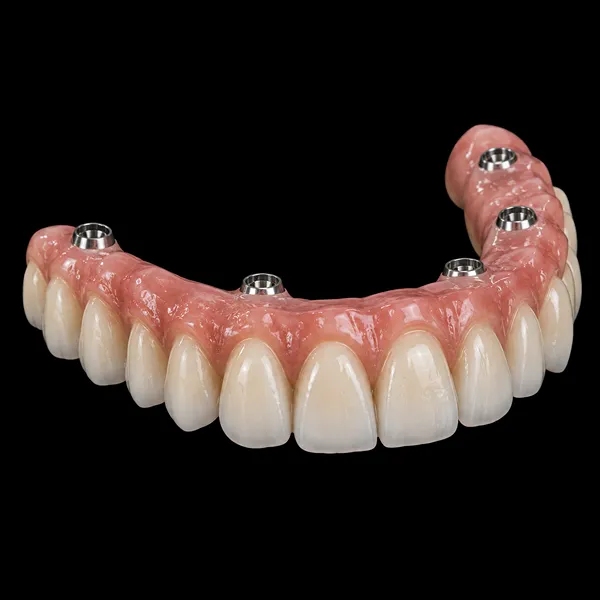

Screw-Retained Full-Arch PFM BridgeWe provide screw-retained full-arch PFM bridges for implant-supported rehabilitation where a retrievable fixed prosthetic design is prescribed. The bridge is secured through the implant-supported screw-retention system while the porcelain veneer provides customized tooth morphology and aesthetics across the complete arch.
|
|
|

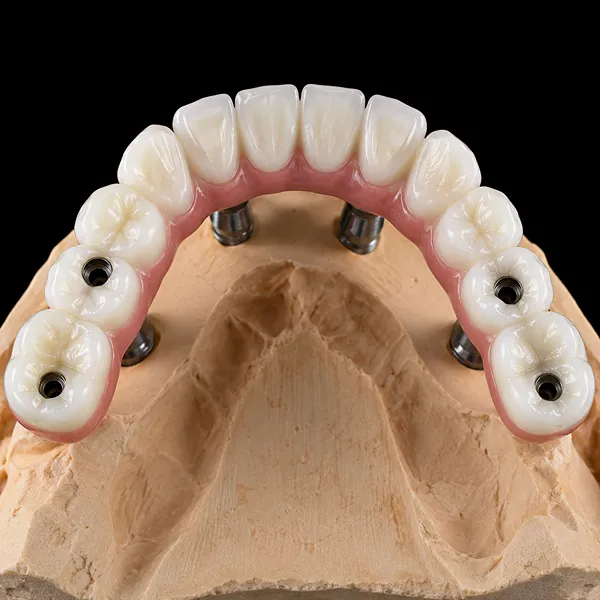

Co-Cr Full-Arch PFM Implant BridgeOur Co-Cr full-arch PFM implant bridge uses a cobalt-chromium alloy framework to support the porcelain-veneered full-arch restoration. The framework can be designed according to the implant distribution, restorative space and prescribed full-arch prosthetic arrangement.
|
|
|

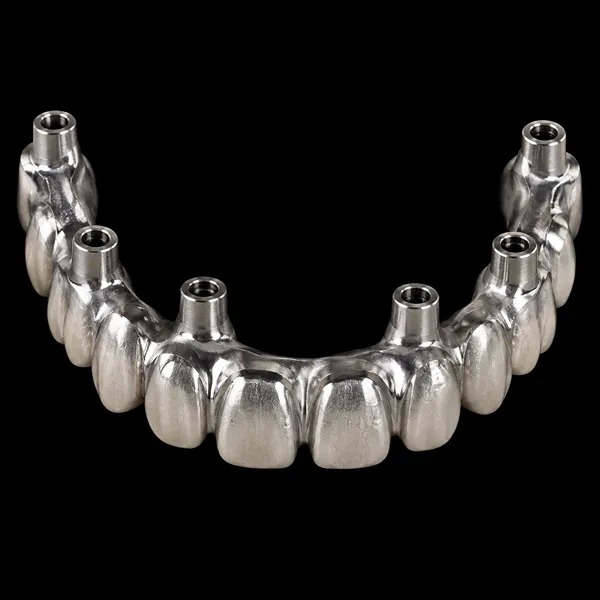

Titanium Full-Arch PFM Implant BridgeBestoDental titanium full-arch PFM implant bridge combines a titanium-based framework or prescribed titanium implant-supported structure with porcelain veneering. Its material configuration is designed for full-arch implant cases where titanium is specifically selected for the supporting framework.
|
|
|

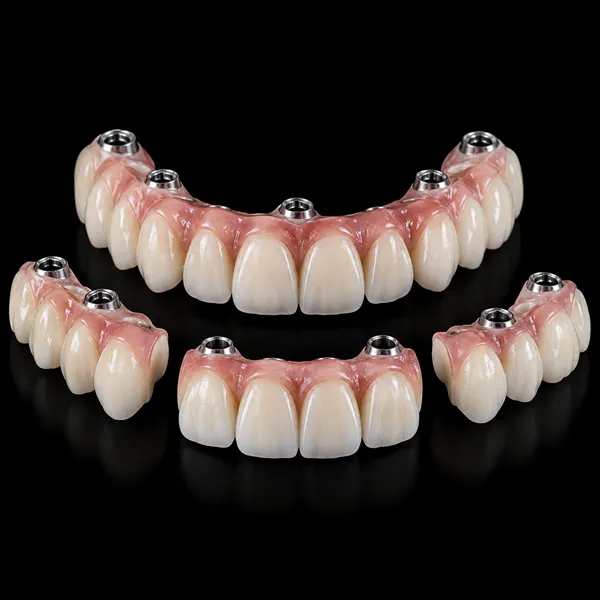

Segmented Full-Arch PFM Implant BridgeWe offer segmented full-arch PFM implant bridges as multiple coordinated bridge sections for complex implant-supported full-arch restorations. The segmented design allows the prosthetic arrangement to be organized around implant distribution, restorative space and the prescribed full-arch framework configuration.
|
Full-Arch PFM Implant Bridge
Full-Arch PFM Implant Bridge
Our Full-Arch PFM Implant Bridge restorations provide a versatile metal-ceramic solution for complete-arch implant-supported rehabilitation. BestoDental offers All-on-4, All-on-6, screw-retained, Co-Cr, titanium, and segmented configurations to accommodate different implant distributions, framework requirements and full-arch restorative concepts.
- All-on-4 and All-on-6 full-arch PFM implant bridge configurations
- Screw-retained full-arch bridges with customized implant-supported framework design
- Co-Cr and titanium framework options for prescribed full-arch implant restorations
- Segmented full-arch configurations with customized tooth arrangement, shade, morphology, and occlusal anatomy
Clinical & Technical Information
Full-Arch PFM Implant Bridge is a fixed metal-ceramic implant restoration designed to replace an entire dental arch using multiple implant-supported components. BestoDental provides All-on-4, All-on-6, screw-retained, Co-Cr, titanium and segmented configurations to accommodate different implant distributions, framework materials and full-arch restorative requirements.
1. Indications
Our Full-Arch PFM Implant Bridge restorations are suitable for:
- Full-arch replacement with implant-supported fixed prostheses
- All-on-4 full-arch implant-supported restorations
- All-on-6 full-arch implant-supported restorations
- Screw-retained full-arch implant bridges
- Full-arch restorations requiring Co-Cr framework configurations
- Full-arch restorations prescribed with titanium framework components
- Complex cases requiring segmented full-arch bridge configurations
- Restorations requiring customized tooth morphology, shade, occlusal anatomy and prosthetic contours
2. Technical Specifications
| Product Name | Full-Arch PFM Implant Bridge |
| Configurations | All-on-4, All-on-6, Screw-Retained and Segmented Full-Arch Implant Bridges |
| Framework Options | Co-Cr Alloy, Titanium or Other Prescribed Implant-Compatible Metal Framework |
| Veneering | Dental Porcelain |
| Retention | Screw-Retained |
| Implant Support | Four-Implant, Six-Implant or Other Prescribed Full-Arch Implant Configuration |
| Framework Design | Customized According to Implant Distribution and Full-Arch Prosthetic Requirements |
| Segmented Configuration | Available for Cases Requiring Multiple Coordinated Bridge Sections |
| Tooth Arrangement | Customized According to Arch Form, Implant Position and Clinical Prescription |
| Shade | Customized According to Prescribed Shade |
| Tooth Morphology | Customized Anatomical Form and Surface Contour |
| Occlusal Design | Customized According to Opposing Dentition and Functional Requirements |
| Proximal Contacts | Customized According to Adjacent Teeth and Clinical Prescription |
3. Aesthetics
Our full‑arch restorations deliver natural‑looking results via the following customizable aesthetic features:
1. Natural-Looking Porcelain Veneering
The porcelain veneering layer is designed to reproduce natural tooth color, anatomy and surface characteristics across the full-arch restoration.
2. Customized Full-Arch Tooth Arrangement
Tooth position and morphology can be adjusted according to the arch form, implant distribution, available restorative space and prescribed prosthetic design.
3. Shade Coordination
The porcelain shade can be selected according to the clinical prescription and surrounding dentition to create a coordinated appearance throughout the restored arch.
4. Surface Anatomy and Contour
Surface texture, line angles and external contours can be customized to create appropriate anatomical characterization and a natural-looking full-arch appearance.
5. Occlusal and Proximal Anatomy
Occlusal anatomy and proximal contacts can be customized according to the opposing dentition, implant-supported framework and functional requirements of the individual case.
Order FAQs
1. Can a Full-Arch PFM Implant Bridge be screw-retained?
Yes. Screw-retained full-arch PFM bridges are secured through the prescribed implant-supported screw-retention system and include screw-access channels positioned according to the implant and prosthetic design.
2. Can the teeth, shade, and occlusion of a full-arch PFM implant bridge be customized?
Yes. Tooth morphology, arrangement, shade, surface anatomy, proximal contacts, and occlusal design can be customized according to the clinical prescription, opposing dentition, and full-arch restorative requirements.
3. What information is needed when ordering a Full-Arch PFM Implant Bridge?
The implant system and connections, implant positions and number, retention method, framework material, and full-arch configuration should be provided. The prescription can also include tooth arrangement, shade, occlusal requirements, and any specific framework or segmentation requirements.
