Standard Bonded RPEBestoDental Standard Bonded RPE works well when widening the upper jaw needs solid support across all teeth. Instead of slipping, it holds firm thanks to durable adhesion that keeps movement steady. Because it’s built for consistency, results tend to follow a clear path. While force spreads evenly, bone responds in a way that matches expectations. Even under constant pressure, the bond stays intact, making adjustments go smoothly.
|
|
|

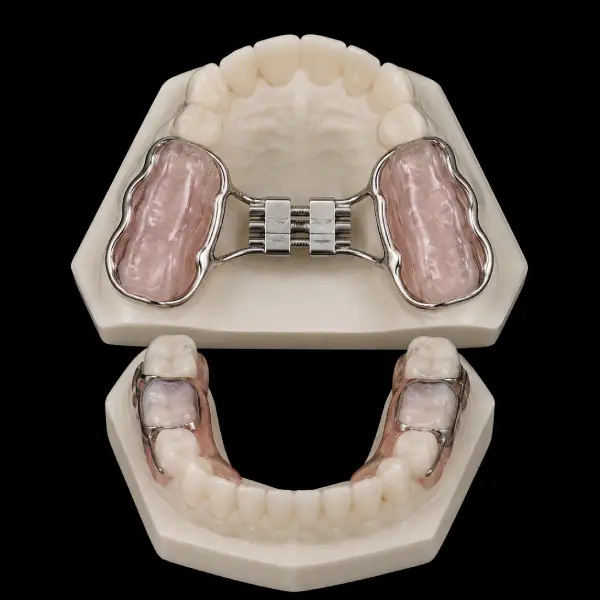

Bonded Hyrax ExpanderOur Bonded Hyrax Expander uses a screw-type system that shifts bone gradually. Instead of bands, it holds fast with acrylic secured directly to teeth – steady grip means steady movement. Because force spreads through the bond, changes happen across the jaw without slipping. With each turn, width increases just enough, guided by how the frame resists. Stability comes from fusion between cap and crown surfaces, locking motion where needed. Rather than relying on clasps, this one stays put thanks to adhesion strength beneath its shell.
|
|
|
Bonded Haas ExpanderOur Bonded Haas Expander uses an acrylic section across the palate along with a built-in screw mechanism. This setup works through gradual widening, affecting both teeth and underlying bone structure. Movement happens not just at the dental level but also influences jaw development. The device spreads pressure more evenly thanks to its design. Stability improves because forces are shared across broader areas. Treatment gains support from how parts connect within the appliance.
|
|
|

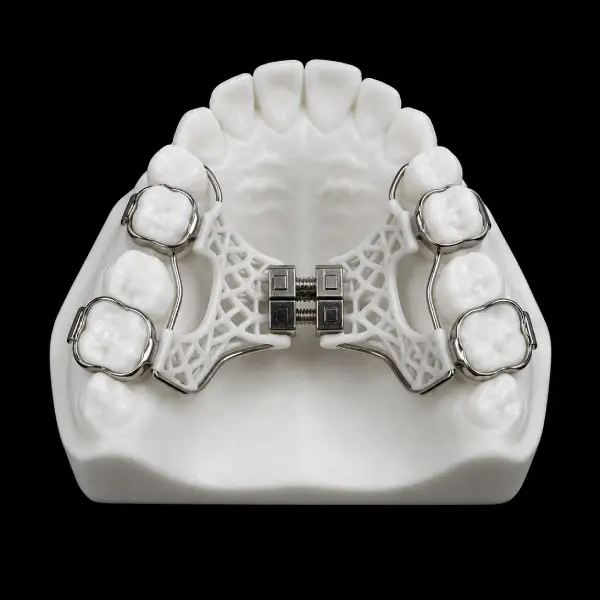

3D Printed Bonded ExpanderOur 3D Printed Bonded Expander fits right into digital orthodontics with a fresh take. Built using additive methods, it brings sharp detail to each piece. Instead of guesswork, there’s exactness in shape and size. Production moves faster because layers form part by part. Accuracy improves, thanks to how closely the design matches patient needs.
|
|
|

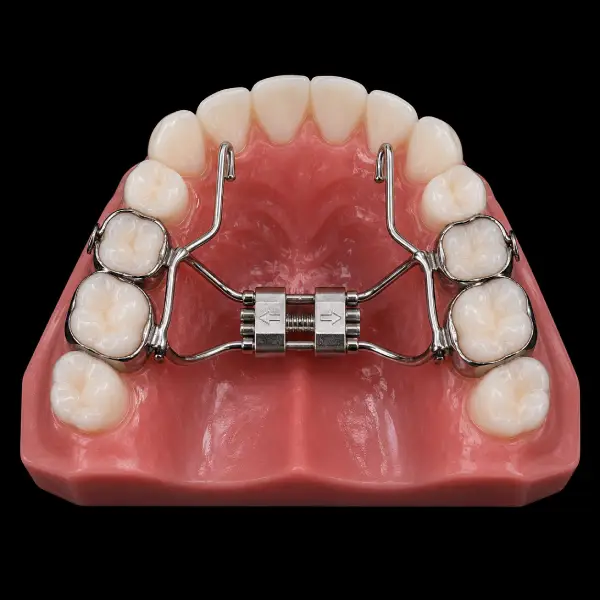

Bonded Expander with Protraction HooksOur Bonded Expander With Protraction Hooks is built when widening across plus pulling the upper jaw forward are needed. Built into it sit small attachments where rubber bands hook on, guiding how pressure moves through the mouth. This one piece handles two jobs at once without extra parts tagging along. Forces spread out just right because everything connects smoothly. Each detail works together even if described apart.
|

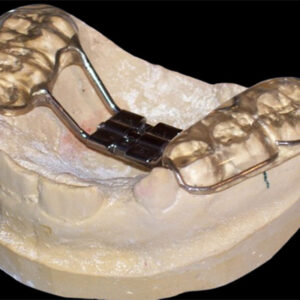

Bonded Palatal Expander
Bonded Palatal Expander
Bestodental’s bonded palatal expander is available with an optional debonding ring for easy appliance removal. It can also be customized with additional components such as facemask hooks, cribs, archwire tubes, and headgear tubes to accommodate a wide range of orthodontic treatment protocols.
- Restore confidence with effective smile correction.
- Address posterior bite issues with stable orthopedic support.
- Enhance airway expansion to support better breathing in growing patients.
- Reduce or eliminate dental crowding during early developmental stages.
Clinical & Technical Information
Bonded Palatal Expander is a fixed orthodontic rapid maxillary expansion device designed to correct transverse maxillary deficiency in growing patients. It is bonded directly to posterior teeth, providing strong anchorage and controlled orthopedic expansion of the maxillary arch. BestoDental Bonded Expanders are widely used in early orthodontic treatment, crossbite correction, and arch development cases requiring skeletal expansion and stable force delivery.
1. Indications
Our Bonded Palatal Expander systems are Suitable For:
- Patients with transverse maxillary deficiency (narrow maxillary arch)
- Posterior crossbite correction (unilateral or bilateral)
- Growing patients requiring skeletal maxillary expansion
- Moderate to severe crowding requiring arch width development
- High-anchorage cases where tooth-borne or bonded stabilization is required
- Class III tendency cases requiring maxillary protraction support (with hooks design)
- Orthopedic correction of maxillary constriction in mixed dentition stage
- Cases requiring stable, fixed expansion without patient compliance dependency
2. Technical Specifications
| Technical Parameter | Specification |
| Material Type | Stainless steel framework (medical-grade orthodontic alloy) with acrylic bonded pads or 3D printed resin base (depending on model) |
| Product Variants | Standard Bonded RPE / Bonded Hyrax Expander / Bonded Haas Expander / 3D Printed Bonded Expander / Bonded Expander with Protraction Hooks |
| Device Type | Fixed rapid palatal expansion appliance (bonded tooth-supported orthopedic expander) |
| Anchorage Design | Full-coverage bonded molar/premolar coverage for enhanced stability and force distribution |
| Expansion Mechanism | Central jackscrew activation system for controlled midpalatal suture separation |
| Activation Protocol | Typically 0.25 mm per turn (clinical protocol adjustable by orthodontist) |
| Force Delivery Type | Orthopedic transverse expansion force applied to maxillary skeletal structures |
| Framework Design | Hyrax (screw-based), Haas (acrylic tissue-anchored), or hybrid bonded structures depending on variant |
| Bonding Method | Direct composite bonding to posterior teeth with reinforced acrylic or metal pads |
| 3D Design Compatibility | Compatible with digital scans (STL) and CAD orthodontic design workflows (for 3D printed variant) |
| Patient Age Range | Primarily growing patients (mixed dentition), case-dependent adult assisted expansion possible |
| Force Control | High rigidity system enabling controlled orthopedic expansion with minimal deformation |
| Stability | High intraoral stability due to full bonded anchorage design |
| Protraction Hook Option | Available for Class III treatment cases requiring maxillary protraction with elastics |
| Hygiene Consideration | Bonded design requires reinforced hygiene management due to full-coverage structure |
| Clinical Adjustment | Activation only via screw; no intraoral bending adjustments required |
| Retention Period | Post-expansion retention phase required for stabilization of expanded sutural structure |
| Case Turnaround Time | 5–8 working days depending on design complexity and variant type |
3. Aesthetics
Here are the aesthetics for our Bonded Palatal Expander systems:
1) Full Coverage Hidden Expansion System
The bonded structure is fully integrated onto posterior teeth, providing functional expansion without external visibility in anterior esthetic zones.
2) Minimal Visible Hardware Design
Most structural components are located palatally, reducing impact on smile aesthetics during treatment.
3) Functional Orthopedic Design Appearance
The device emphasizes clinical functionality with compact, low-profile architecture for patient comfort.
4) Stable Treatment Esthetics During Expansion Phase
Maintains consistent intraoral positioning without frequent adjustments, ensuring predictable mid-treatment appearance.
Order FAQs
1. What information is required to submit a Bonded Palatal Expander case?
Please provide patient name, upper arch STL scan or impression, bite registration if available, orthodontic prescription, expansion protocol details, and any specific design requirements from the clinician.
2. Do you accept digital impressions and which systems are compatible?
Yes. We accept STL files from major intraoral scanners and CAD/CAM systems, including 3Shape, Medit, iTero, and other open digital formats.
3. What is the typical turnaround time for Bonded Palatal Expander cases?
Standard turnaround time is approximately 3–5 working days after design confirmation. More complex reinforced or CAD/CAM cases may require additional time.
4. What types of clinical cases are suitable for bonded palatal expanders?
They are suitable for patients with maxillary constriction, posterior crossbite, and pediatric or adolescent orthodontic expansion needs.
5. How is expansion controlled in this appliance?
Expansion is controlled through a central screw mechanism or prescribed activation protocol depending on the selected design type.
6. What materials are used in bonded palatal expanders?
Common materials include high-strength acrylic resin and metal reinforcement components depending on design requirements.
7. How do you ensure fit accuracy of the appliance?
Fit accuracy is ensured through precise digital design or model-based fabrication using provided scan data and clinical instructions.
8. Can reinforcement be added for high-force cases?
Yes. Metal reinforcement can be incorporated into the design to improve structural strength and resistance to deformation.
9. What records are recommended for best fabrication results?
We recommend providing clear upper arch scans or impressions, occlusal registration, and detailed orthodontic instructions to ensure optimal appliance design.
