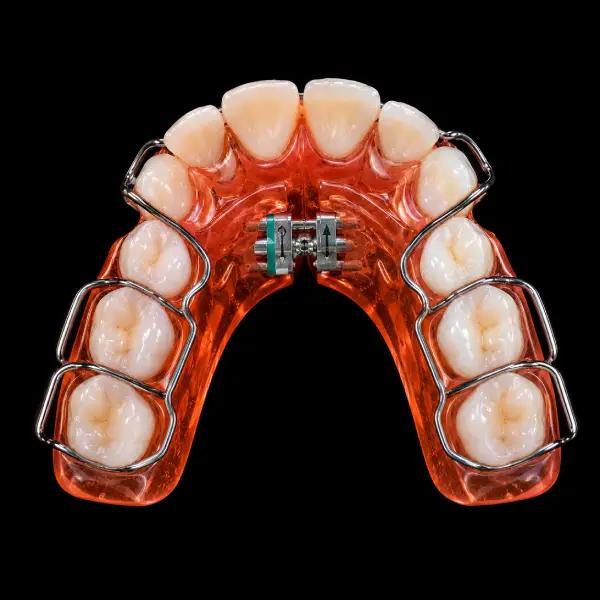

Schwarz ApplianceBestoDental Schwarz Appliance is designed for interceptive orthodontic treatment in growing patients, providing controlled transverse arch development with removable functionality and adjustable expansion mechanics for gradual correction.
|
|
|

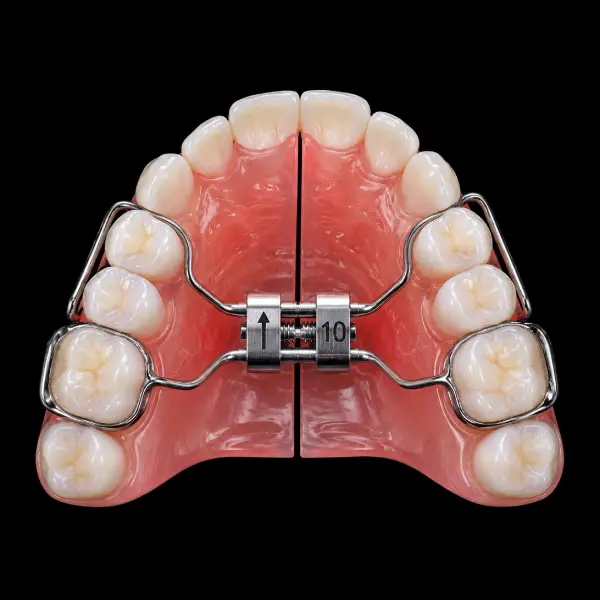

Split Plate ExpanderOur Split Plate Expander is designed for bilateral controlled expansion, allowing symmetrical arch development through a split acrylic plate system with screw activation for precise transverse adjustment.
|
|
|

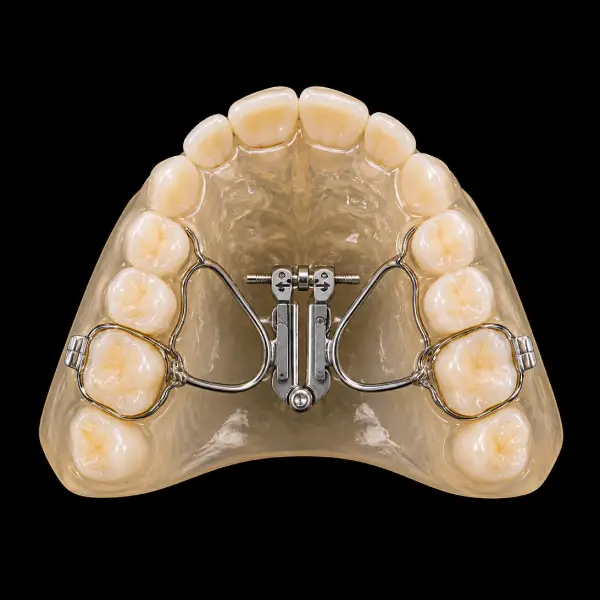

Fan-Type ExpanderBestoDental Fan-Type Expander is designed for anterior-focused expansion, enabling differential arch widening where the front teeth expand more than posterior segments, ideal for V-shaped arch correction.
|
|
|

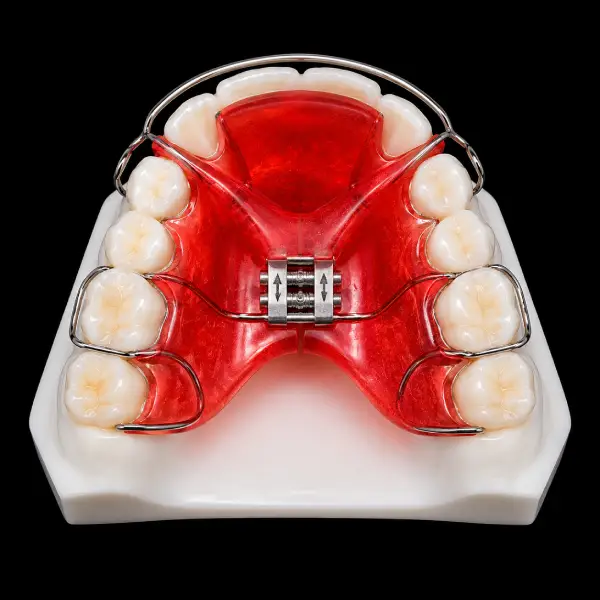

Y-Plate ExpanderOur Y-Plate Expander is designed with a Y-shaped acrylic structure to distribute expansion forces efficiently across the maxillary arch, supporting balanced transverse development and improved stability during activation.
|
|
|

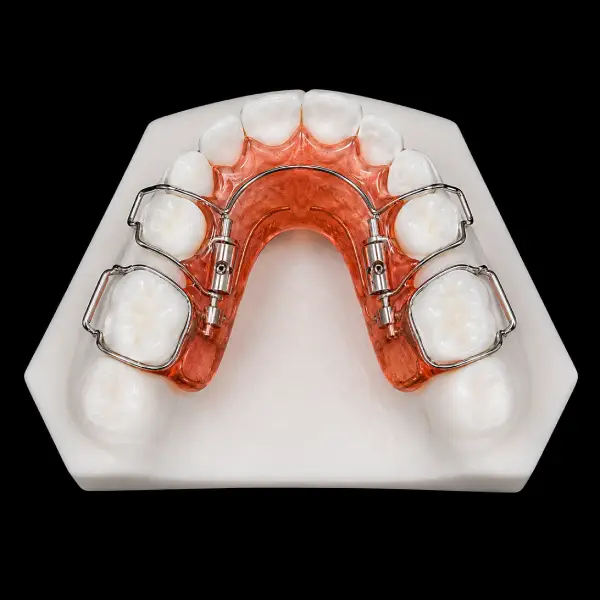

Sagittal ApplianceOur Jaw Alignment Device fine tunes tooth positioning from the front toward the back using BestoDental’s device meant for jaw alignment shifts. Motion along that plane adjusts how upper and lower sections fit together over time. Spacing gaps close gradually when teeth move forward or backward as needed. Developing bites respond well to steady repositioning forces applied segment by segment. Bite contacts improve while alignment straightens during growth phases.
|
|
|

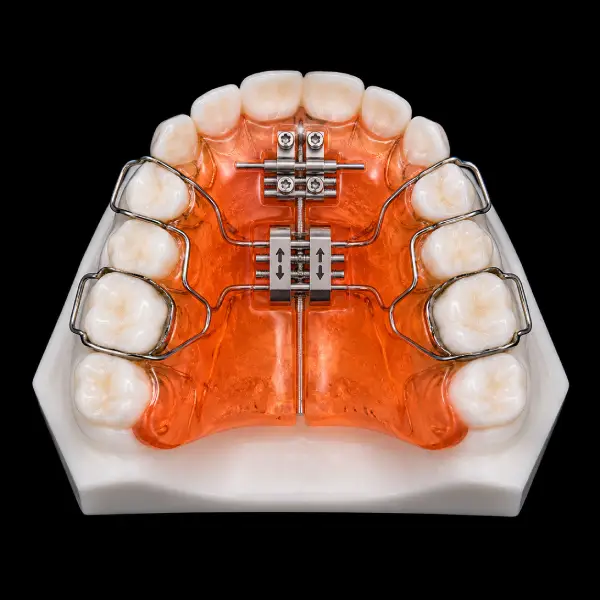

Three-Way ExpanderOur Three-Way Expander is designed for multi-directional orthodontic expansion, enabling simultaneous transverse and segmental adjustments for complex arch correction cases requiring comprehensive control.
|

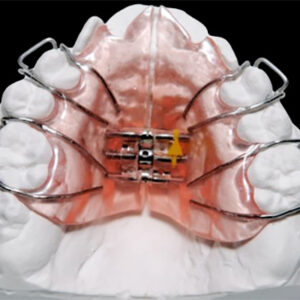

Removable Expander
Removable Expander
Bestodental’s removable expander is developed and crafted by an experienced technical team and can be fully customized based on each patient’s oral scan data for a precise and comfortable fit.
- Helps patients achieve a confident and well-aligned smile.
- Effectively corrects crossbites and posterior bite issues.
- Reduces or eliminates dental crowding in early-stage cases.
- Easily removable, allowing for convenient cleaning and maintenance.
Clinical & Technical Information
The Removable Expander adjusts how teeth align across the jaw when there’s a slight or medium width issue. This device fits inside the mouth, allowing patients to take it out whenever needed. Instead of staying fixed, its movement comes from turning a small screw or adjusting an acrylic base piece by hand. Little shifts happen each time, widening the space where teeth sit. Dentists often choose BestoDental versions during early stages of treatment, especially while baby and adult teeth mix together. These appliances help shape growth gently without blocking daily cleaning routines. Flexibility and ease of care make them common picks for certain bite correction needs.
1. Indications
Our Removable Expander systems are Suitable For:
- Patients with mild to moderate maxillary or mandibular arch constriction
- Interceptive orthodontic treatment in mixed dentition stage
- Dentoalveolar expansion cases without severe skeletal discrepancy
- Early crowding relief through arch width development
- Functional correction of minor crossbite cases
- Growth guidance in pediatric and adolescent orthodontic patients
- Cases requiring removable, hygiene-friendly expansion appliances
- Retention or post-expansion stabilization cases after fixed expansion therapy
2. Technical Specifications
| Technical Parameter | Specification |
| Material Type | High-quality orthodontic acrylic base with stainless steel wire components and expansion screws |
| Product Variants | Schwarz Appliance / Split Plate Expander / Fan-Type Expander / Y-Plate Expander / Sagittal Appliance / Three-Way Expander |
| Device Type | Removable orthodontic expansion appliance (acrylic plate-based system) |
| Expansion Mechanism | Midline or sectional screw activation system depending on design type |
| Activation Method | Manual screw turning (patient or clinician directed) |
| Force Delivery Type | Light to moderate dentoalveolar expansion forces |
| Anchorage Design | Tooth-supported acrylic plate with clasps for retention (Adam’s clasp or C-clasp options) |
| Design Types | Schwarz (unilateral/bilateral expansion), Split Plate (midline split), Fan-Type (anterior focused expansion), Y-Plate (segmented expansion), Sagittal (anteroposterior adjustment), Three-Way (multi-directional expansion) |
| Patient Compliance Requirement | High compliance required due to removable design |
| Wear Time | Typically 14–22 hours per day depending on clinical protocol |
| Adjustment Capability | Screw activation allows controlled incremental expansion |
| Hygiene Advantage | Removable design allows easy cleaning and improved oral hygiene maintenance |
| Retention System | Wire clasps and acrylic adaptation for mechanical retention on teeth |
| Occlusal Impact | Minimal occlusal interference due to removable structure |
| 3D Workflow Compatibility | Compatible with digital orthodontic planning and 3D printed acrylic base fabrication (optional) |
| Material Comfort | Lightweight acrylic structure designed for patient comfort and adaptability |
| Clinical Control | Adjustable activation allows stepwise expansion control under clinician supervision |
| Case Turnaround Time | 3–6 working days depending on design complexity and variant type |
3. Aesthetics
Here are the aesthetics for our Removable Expander Systems :
1) Low-Profile Intraoral Design
Out of thin acrylic sheets, the frame takes shape – lightweight by design yet ready to grow when needed. Built without extra weight, it still allows room to add more later. Not heavy at all, though there’s space to include extras if required.
2) Tooth-Colored Acrylic Base
Clear plastic parts look unnoticeable inside the mouth while therapy continues.
3) Removable Clean Appearance
Removing the device makes it easier for people to keep their mouth clean. This helps lower the amount of plaque they can see building up.
4) Functional Orthodontics Meets Facial Harmony
While fixing how things work inside the mouth, it still looks decent during daily wear. Appearance stays manageable even as adjustments happen over time.
Order FAQs
1. What information is required to submit a Removable Expander case?
Please provide patient name, upper arch scan or impression, bite registration if available, orthodontic prescription, expansion screw requirements, and any specific design instructions.
2. Do you accept digital impressions and which systems are compatible?
Yes. We accept STL files from major intraoral scanners and CAD/CAM systems, including 3Shape, Medit, iTero, and other open digital formats.
3. What clinical cases are suitable for removable expanders?
These work well for slight to moderate upper jaw narrowing, fixing misaligned bites, while also helping guide tooth development in children whose jaws are still forming.
4. How is expansion controlled in removable expanders?
Expansion is controlled using a central expansion screw that is activated according to the clinician’s prescribed protocol.
5. Can removable expanders be used for growing patients?
Yes. They are commonly used in pediatric and adolescent patients during growth guidance orthodontic treatment.
6. What materials are used in removable expanders?
Common materials include acrylic resin, stainless steel clasps, and expansion screws depending on design requirements.
7. How do you ensure fit accuracy of removable appliances?
Fit accuracy is ensured through precise digital design or model-based fabrication using provided scan data and clinical instructions.
8. Can removable expanders be customized for hygiene improvement?
Yes. Hygienic designs with reduced palatal coverage can be incorporated to improve oral hygiene access.
9. What records are recommended for best fabrication results?
We recommend providing accurate upper arch scans or impressions, occlusal records if available, and clear orthodontic expansion instructions.
